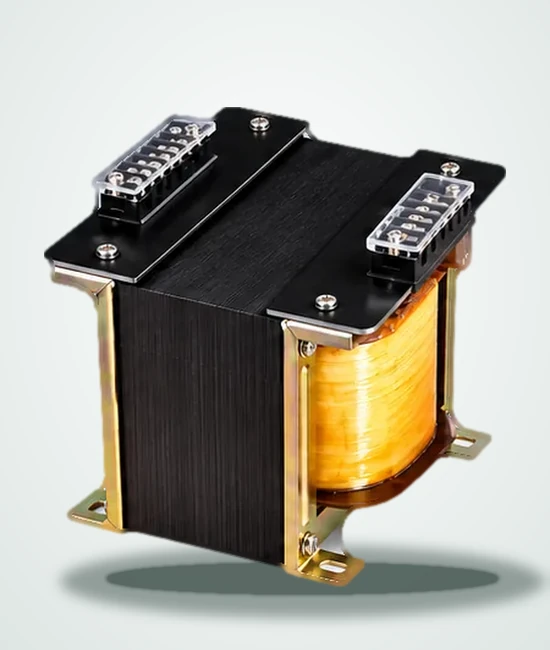

Control transformer – terminal-block type
Laminated core with wound coil and a clear-cover terminal block for tidy panel wiring.
Overview

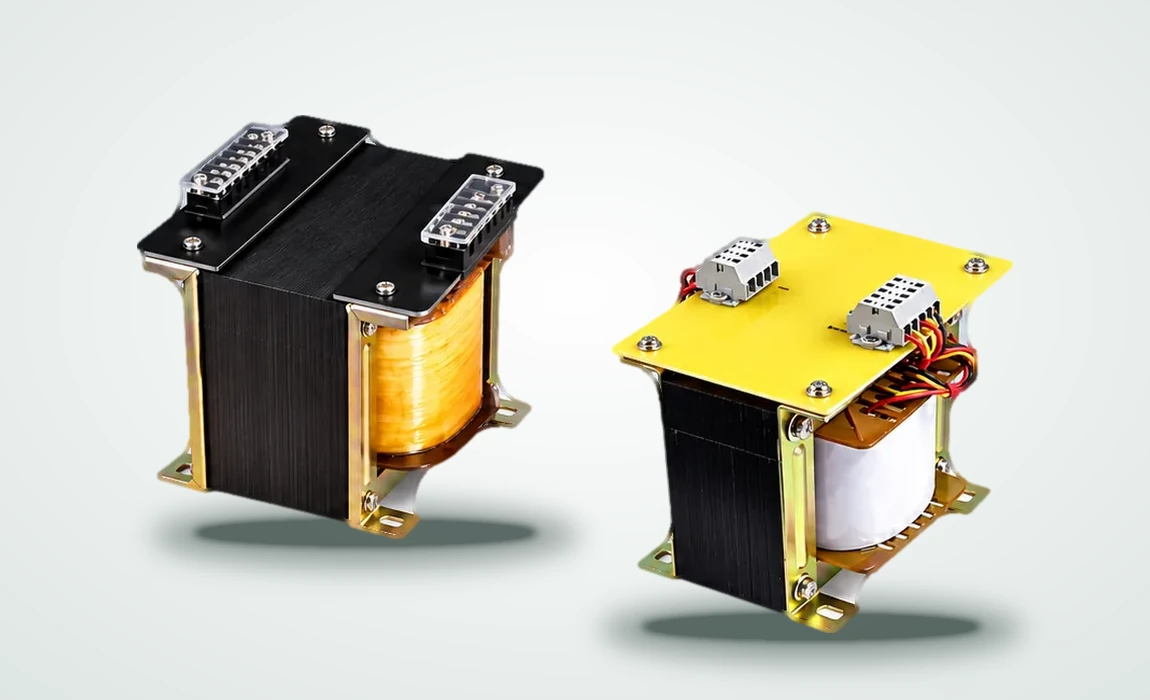

Control & Potential Transformers for Panels
Alongside current transformers, Electromeasures supplies control and potential transformers built to the voltage, VA rating and mounting needs of your panel. Share your requirement and our engineers will propose the right design.
Configurations
2 types to match your installation

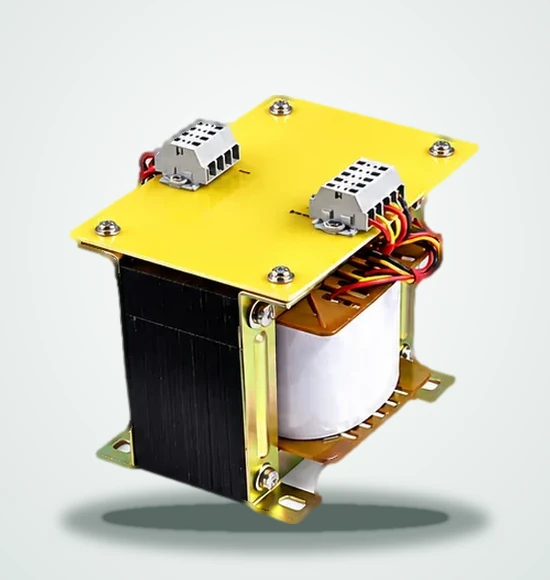

Control transformer – PCB-terminal type
Laminated core with a terminal-board mounting for compact, serviceable connections.
Key features
Built for dependable performance
- Laminated core with wound copper coil
- Terminal blocks for easy, safe wiring
- Mounting feet for secure fixing
- Engineered to your input / output voltage and VA rating
- Manufactured with the same test discipline as our CT range
Applications
Where it is used
- Control circuits in switchgear and MCC panels
- Machine and automation panels
- Instrumentation and measurement supplies
- Industrial and process plants
Specifications
Engineered to your parameters
Share the parameters below with your enquiry. Detailed datasheets are available on request.
| Primary current / ratio | Specified to the load or busbar rating, with standard 1 A or 5 A secondary |
|---|---|
| Burden (VA) | Matched to the meters, relays and lead length connected |
| Accuracy class | Metering or protection class chosen for the application |
| Window / ID size | Round or rectangular opening sized to your cable or busbar |
| Terminal position | Shorter side, longer side or top-mounted as the panel requires |
| Quantity & delivery | From single units to volume supply with consistent quality |
Get a quote
Enquire about Control Transformers
Tell us what you need – ratio, burden, accuracy class, window size, terminal position and quantity – and we will respond within one working day.
